Performance
The BVC IV60 is a range of Industrial Vacuum Cleaners designed to meet all requirements in the up to 3kW class
The IV60 is powerful enough to meet demanding applications, and yet relatively compact and very maneuverable making it the perfect workhorse for many different applications.
Based on the original BVC IV60 Combi, the new IV60 range introduces new versions offering an even wider choice of collection tanks and power units.
The IV60 range is all about flexibility. The range of collection tanks includes a dry tank for fine dust collection, utilising a disposable paper bag, a wet tank, a drop tank for bulk collection of heavier products, and a longopac option for specialist applications.
In addition to a choice of collection tanks, the customer can choose from a wide range of power units depending on the application. Standard electric motors range from 0.75kW to 2.2kW with a choice of 110v, 230v, and 1ph or 3ph induction motors.
IV60 is also available with Honda GX160 petrol engines and also the brand new and revolutionary Honda eGX battery engine which delivers the benefits of an Industrial Vacuum Cleaner for internal use without any necessity for trailing leads.
Key Features
Choosing a heavy duty industrial vacuum cleaner is all about performance, but that performance must be tailored to suit the application to guarantee satisfaction.
Every application is different:- dust, grain, stone, sand, metal, wood, flour; whatever the material to be handled, careful adaption and specification of the machine is necessary to achieve the objective.
Because we manufacture here in the UK we are able to tailor make every machine to our customer’s requirements. Specifying a Ti80 Industrial Vacuum Cleaner starts with the motor – exhauster combination. Ti80 uses a unique “multistage” AB08 exhauster. This unit, manufactured by Quirepace and part of the BVC range of exhauster modules, is different from the more common side-channel unit found on most machines. The multistage construction means that the unit is powerful and extremely robust. Should anything inadvertently get drawn in, the multistage construction is extremely resilient to damage through even quite large particles being drawn through the impeller. Ti80 Industrial Vacuum Cleaners are fitted with powerful continuously rated 3ph induction (brushless) motors from 7.5kW to 15kW, but diesel and petrol powered alternatives are available.
The powerful Ti80 is particularly suited to cleaning tasks on construction sites and within factories where heavier materials such as concrete and brick dust must be recovered.
The vacuum and cleaning performance can be manipulated through the motor-exhauster gearing, and via the type and diameter of hose that is used. As standard, Ti80 offers options of 102mm 76mm 51mm and 38mm, and several hose types, sizes and lengths can be used on a single machine through adapters.
The power to utilise long hoses in several diameters also makes Ti80 ideally suited for small fixed pipe Central Vacuum Cleaning installations.
Performance and Versions

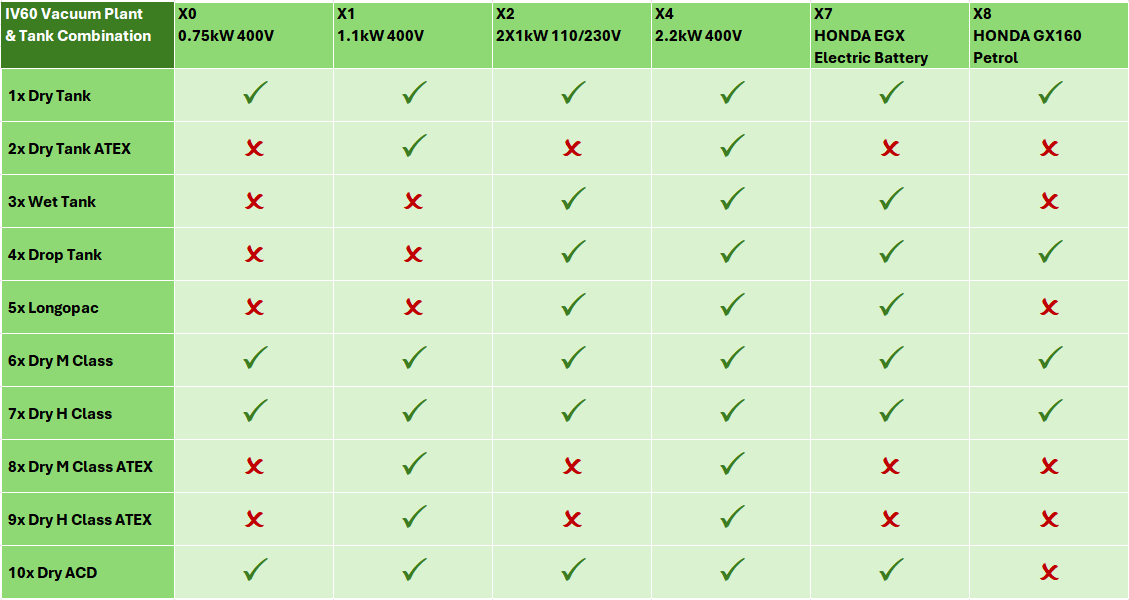

BVC IV60 is available with several different tank and motor combinations as the table above. The twin motor variants use powerful series-wound single phase turbines. The 3 phase machines use induction motors combined with BVC multistage vacuum pumps and are suitable for continuous running. Powerful Honda petrol engines deliver the equivalent of 3kW whilst the revolutionary Honda eGX battery engine delivers up to 1.5kW.
The new IV60 is available as a cordless Industrial Vacuum Cleaner
ATEX
The BVC IV60 ATEX rated Industrial Vacuum Cleaner is available in two slightly different versions. One is suitable for use in ATEX Dust Zone 22 only and a slightly different specification is suitable for both Dust Zone 22 and Gas Zone 2; the units use slightly different motors and control enclosures.
Both versions have sealed and ATEX rated control enclosures, ATEX rated induction motors and are manufactured from anti-static and spark resistant materials; the tank head on the ATEX version, for example, is stainless steel rather than cast aluminium as used on standard machines.
ATEX rated BVC IV60 Industrial Vacuum Cleaners are used with anti-static tools and hoses. Filter materials have anti-static properties.
M and H Class
Downloads
Related products
-
Filter Cloth Assembly 540L x 352D
Filter cloth assembly 540L x 352D polyester needlefelt, suitable for IV60SFA/ IV60HAdd to basket£68.76 (ex. VAT)£82.51 (Incl. VAT) -
Foam Gasket For Flat Top
Foam gasket for flat top suitable for IV60LF/ IV60SFA/ IV60HAdd to basket£4.00 (ex. VAT)£4.80 (Incl. VAT) -
ATEX Filter Bag Assembly Anti Static
ATEX Filter bag assembly - anti static, suitable for IV60SFA ATEXAdd to basket£104.09 (ex. VAT)£124.91 (Incl. VAT) -
ATEX Foam Gasket
ATEX Foam gasket suitable for IV60SFA ATEXAdd to basket£10.88 (ex. VAT)£13.06 (Incl. VAT) -
Paper Bag Support Ring
Paper bag support ring suitable for IV60LF/ IV60FA/ IV60HAdd to basket£51.30 (ex. VAT)£61.56 (Incl. VAT) -
Paper Bags (25 Pack)
Paper bag 405W x 1120L (25 pack), suitable for IV60LFAdd to basket£76.25 (ex. VAT)£91.50 (Incl. VAT) -
Cooling Air Filter
Cooling air filter suitable for IV60HAdd to basket£130.00 (ex. VAT)£156.00 (Incl. VAT) -
Filter Cloth Assembly 343D x 762L
Filter cloth assembly 343D x 762L manufactured from polyester needlefelt, suitable forAdd to basket£84.00 (ex. VAT)£100.80 (Incl. VAT) -
Hepa Filter For IV60SFA/IV60H
Hepa filter suitable for IV60SFA/ IV60HAdd to basket£123.00 (ex. VAT)£147.60 (Incl. VAT) -
Paper Bags (25 Pack)
Paper bag 405W x 865L, suitable for IV60SFA / IV60H / IV60FAAdd to basket£86.25 (ex. VAT)£103.50 (Incl. VAT) -
ATEX Hepa Filter for IV60SFA ATEX
ATEX Hepa filter suitable for IV60SFA ATEX This product is discontinued andAdd to basket£0.00 (ex. VAT)£0.00 (Incl. VAT)
BVC IV60 Industrial Vacuum Cleaners have a 5 year parts warranty
